Abstract

This EIP introduces two EVM instructions AUTH and AUTHCALL. The first sets a context variable authorized based on an ECDSA signature. The second sends a call as the authorized account. This essentially delegates control of the externally owned account (EOA) to a smart contract.

Motivation

Adding more functionality to EOAs has been a long-standing feature request. The requests have spanned from implementing batching capabilities, allowing for gas sponsoring, expirations, scripting, and beyond. These changes often mean increased complexity and rigidity of the protocol. In some cases, it also means increased attack surfaces.

This EIP takes a different approach. Instead of enshrining these capabilities in the protocol as transaction validity requirements, it allows users to delegate control of their EOA to a contract. This gives developers a flexible framework for developing novel transaction schemes for EOAs. A motivating use case of this EIP is that it allows any EOA to act like a smart contract wallet without deploying a contract.

Although this EIP provides great benefit to individual users, the leading motivation for this EIP is "sponsored transactions". This is where the fee for a transaction is provided by a different account than the one that originates the call.

With the extraordinary growth of tokens on Ethereum, it has become common for EOAs to hold valuable assets without holding any ether at all. Today, these assets must be converted to ether before they can be used to pay gas fees. However, without ether to pay for the conversion, it's impossible to convert them. Sponsored transactions break the circular dependency.

Specification

Conventions

• top - N - the Nth most recently pushed value on the EVM stack, where top - 0 is the most recent.
• || - byte concatenation operator.
• invalid execution - execution that is invalid and must exit the current execution frame immediately, consuming all remaining gas (in the same way as a stack underflow or invalid jump).

Constants

Constant	Value
MAGIC	0x03

MAGIC is used for EIP-3074 signatures to prevent signature collisions with other signing formats.

Context Variables

Variable	Type	Initial Value
authorized	address	unset

The context variable authorized shall indicate the active account for AUTHCALL instructions in the current frame of execution. If set, authorized shall only contain an account which has given the contract authorization to act on its behalf. An unset value shall indicate that no such account is set and that there is not yet an active account for AUTHCALL instructions in the current frame of execution.

The variable has the same scope as the program counter -- authorized persists throughout a single frame of execution of the contract, but is not passed through any calls (including DELEGATECALL). If the same contract is being executed in separate execution frames (ex. a CALL to self), both frames shall have independent values for authorized. Initially in each frame of execution, authorized is always unset, even if a previous execution frame for the same contract has a value.

AUTH (0xf6)

A new opcode AUTH shall be created at 0xf6. It shall take three stack element inputs (the last two describing a memory range), and it shall return one stack element.

Input

Stack

Stack	Value
top - 0	authority
top - 1	offset
top - 2	length

Memory

The final two stack arguments (offset and length) describe a range of memory. The format of the contents of that range is:

• memory[offset : offset+32 ] - yParity
• memory[offset+32 : offset+64 ] - r
• memory[offset+64 : offset+96 ] - s
• memory[offset+96 : offset+128] - commit

Output

Stack

Stack	Value
top - 0	success

Memory

Memory is not modified by this instruction.

Behavior

If length is greater than 128, the extra bytes are ignored for signature verification (they still incur a gas cost as defined later). Bytes outside the range (in the event length is less than 128) are treated as if they had been zeroes.

authority is the address of the account which generated the signature.

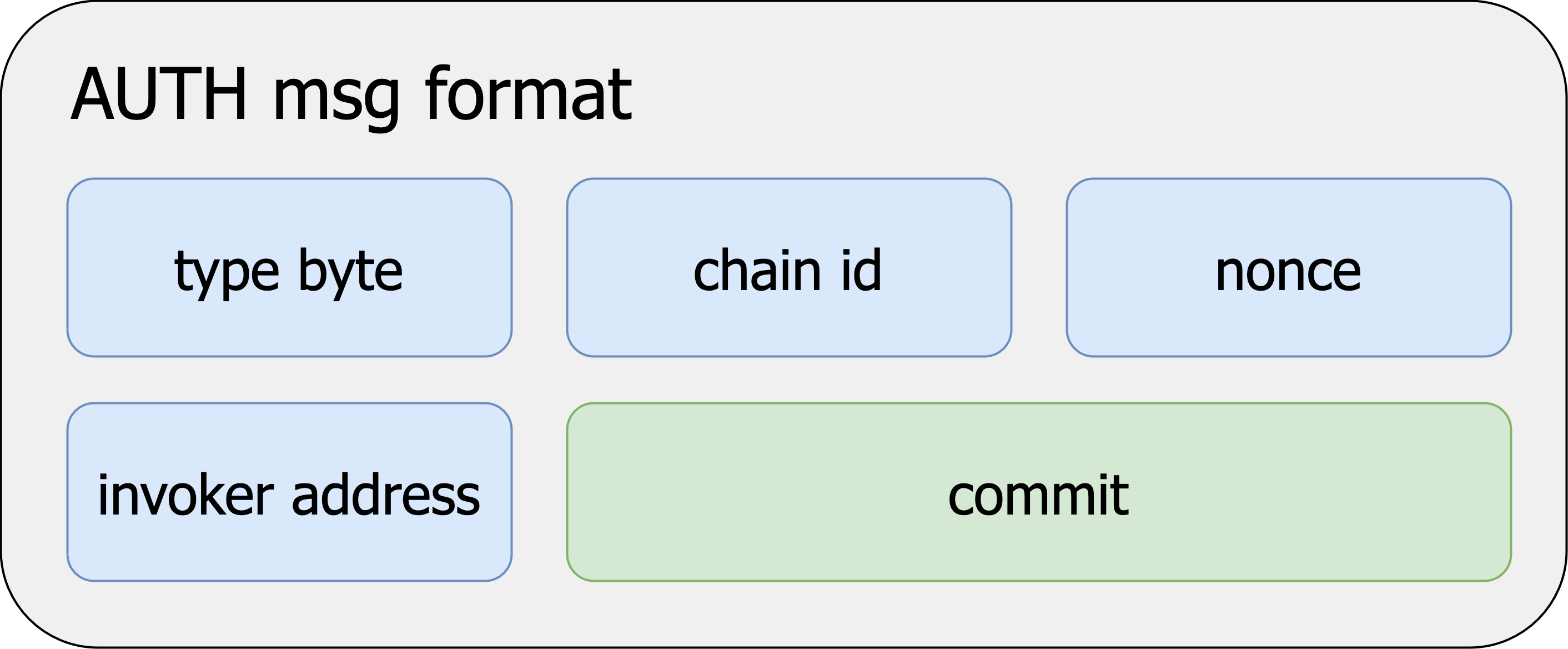

The arguments (yParity, r, s) are interpreted as an ECDSA signature on the secp256k1 curve over the message keccak256(MAGIC || chainId || paddedInvokerAddress || commit), where:

• chainId is the current chain's EIP-155 unique identifier padded to 32 bytes.
• paddedInvokerAddress is the address of the contract executing AUTH (or the active state address in the context of CALLCODE or DELEGATECALL), left-padded with zeroes to a total of 32 bytes (ex. 0x000000000000000000000000AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA).
• commit, one of the arguments passed into AUTH, is a 32-byte value that can be used to commit to specific additional validity conditions in the invoker's pre-processing logic (e.g. a nonce for replay protection).

Signature validity and signer recovery is handled analogously to transaction signatures, including the stricter s range for preventing ECDSA malleability. Note that yParity is expected to be 0 or 1.

If the signature is valid and the signer address is equal to authority, the context variable authorized is set to the authority. In particular, this is also true if authority == tx.origin, which used to be handled separately in earlier versions of this EIP (see Security Considerations). If the signature is instead invalid or the signer address does not equal authority, authorized is reset to an unset value.

AUTH returns 1 if authorized is set, or 0 otherwise.

Gas Cost

The gas cost for AUTH is equal to the sum of:

• fixed fee 3100.
• memory expansion gas cost (auth_memory_expansion_fee)

The fixed fee is equal to the cost for the ecrecover precompile, plus a bit extra to cover a keccak256 hash and some additional logic.

The memory expansion gas cost (auth_memory_expansion_fee) shall be calculated in the same way as RETURN, where memory is expanded if the specified range is outside the current allocation.

AUTHCALL (0xf7)

A new opcode AUTHCALL shall be created at 0xf7. It shall take eight stack elements and return one stack element. It matches the behavior of the existing CALL (0xF1) instruction, except where noted below.

Input

Stack	Value
top - 0	gas
top - 1	addr
top - 2	value
top - 3	valueExt
top - 4	argsOffset
top - 5	argsLength
top - 6	retOffset
top - 7	retLength

Output

Stack	Value
top - 0	success

Behavior

AUTHCALL is interpreted the same as CALL, except for (note: this list is also the order of precedence for the logical checks):

• If authorized is unset, execution is invalid (as defined above). Otherwise, the caller address for the call is set to authorized.
• The gas cost, including how much gas is available for the subcall, is specified in the Gas Cost section.
• If the gas operand is equal to 0, the instruction will send all available gas as per EIP-150.
• If the gas available for the subcall would be less than gas, execution is invalid.
• There is no gas stipend, even for non-zero value.
• value is deducted from the balance of the executing contract. It is not paid by authorized. If value is higher than the balance of the executing contract, execution is invalid.
• If valueExt is not zero, the instruction immediately returns 0. In this case the gas that would have been passed into the call is refunded, but not the gas consumed by the AUTHCALL opcode itself. In the future, this restriction may be relaxed to externally transfer value out of the authorized account.

AUTHCALL must increase the call depth by one. AUTHCALL must not increase the call depth by two as it would if it first called into the authorized account and then into the target.

The return data area accessed with RETURNDATASIZE (0x3d) and RETURNDATACOPY (0x3e) must be set in the same way as the CALL instruction.

Importantly, AUTHCALL does not reset authorized, but leaves it unchanged.

Gas Cost

The gas cost for AUTHCALL shall be the sum of:

• static gas cost (warm_storage_read)
• memory expansion gas cost (memory_expansion_fee)
• dynamic gas cost (dynamic_gas)
• gas available for execution in the subcall (subcall_gas)

The memory expansion gas cost (memory_expansion_fee) shall be calculated in the same way as CALL.

The dynamic gas portion (dynamic_gas), and the gas available for execution in the subcall (subcall_gas) shall be calculated as:

dynamic_gas = 0

if addr not in accessed_addresses:
    dynamic_gas += 2500         # cold_account_access - warm_storage_read

if value > 0:
    dynamic_gas += 6700         # NB: Not 9000, like in `CALL`
    if is_empty(addr):
        dynamic_gas += 25000

remaining_gas = available_gas - dynamic_gas
all_but_one_64th = remaining_gas - (remaining_gas // 64)

if gas == 0:
    subcall_gas = all_but_one_64th
elif all_but_one_64th < gas:
    raise                       # Execution is invalid.
else:
    subcall_gas = gas

As with CALL, the full gas cost is charged immediately, independently of actually executing the call.

Rationale

Signature in Memory

The signature format (yParity, r, and s) is fixed, so it might seem curious that auth accepts a dynamic memory range. The signature is placed in memory so that auth can be upgraded in the future to work with contract accounts (which might use non-ECDSA signatures) and not just EOAs.

Signing Address auth Argument

Including authority (the signing address) as an argument to auth allows future upgrades to the instruction to work with contract accounts, and not just EOAs.

If authority were not included and multiple signature schemes allowed, it would not be possible to compute the authorizing account's address from just the signature alone.

Reserving One Sixty-Fourth of Available Gas

AUTHCALL will not pass more than 63/64th of the available gas for the reasons enumerated in EIP-150.

Throwing for Unset authorized During AUTHCALL

A well-behaved contract should never reach an AUTHCALL without having successfully set authorized beforehand. The safest behavior, therefore, is to exit the current frame of execution immediately. This is especially important in the context of transaction sponsoring / relaying, which is expected to be one of the main use cases for this EIP. In a sponsored transaction, the inability to distinguish between a sponsee-attributable fault (like a failing sub-call) and a sponsor-attributable fault (like a failing AUTH) is especially dangerous and should be prevented because it charges unfair fees to the sponsee.

Another Sponsored Transaction EIP

There are two general approaches to separating the "fee payer" from the "action originator".

The first is introducing a new transaction type. This requires significant changes to clients to support and is generally less upgradeable than other solutions (e.g. this EIP). This approach is also not immediately compatible with account abstraction (AA). These proposals require a signed transaction from the sponsor's account, which is not possible from an AA contract, because it has no private key to sign with. The main advantage of new transaction types is that the validity requirements are enforced by the protocol, therefore invalid transactions do not pollute block space.

The other main approach is to introduce a new mechanism in the EVM to masquerade as other accounts. This EIP introduces AUTH and AUTHCALL to make calls as EOAs. There are many different permutations of this mechanism. An alternative mechanism would be add an opcode that can make arbitrary calls based on a similar address creation scheme as CREATE2. Although this mechanism would not benefit users today, it would immediately allow for those accounts to send and receive ether -- making it feel like a more first-class primitive.

Besides better compatibility with AA, introducing a new mechanism into the EVM is a much less intrusive change than a new transaction type. This approach requires no changes in existing wallets, and little change in other tooling.

AUTHCALL's single deviation from CALL is to set CALLER. It implements the minimal functionality to enable sender abstraction for sponsored transactions. This single mindedness makes AUTHCALL significantly more composable with existing Ethereum features.

More logic can be implemented around the AUTHCALL instruction, giving more control to invokers and sponsors without sacrificing security or user experience for sponsees.

What to Sign?

As originally written, this proposal specified a precompile with storage to track nonces. Since a precompile with storage is unprecedented, a revision moved replay protection into the invoker contract, necessitating a certain level of user trust in the invoker. Expanding on this idea of trusted invokers, the other signed fields were eventually eliminated, one by one, until only invoker and commit remained.

The invoker binds a particular signed message to a single invoker. If invoker was not part of the message, any invoker could reuse the signature to completely compromise the EOA. This allows users to trust that their message will be validated as they expect, particularly the values committed to in commit.

Understanding commit

Earlier iterations of this EIP included mechanisms for replay protection, and also signed over value, gas, and other arguments to AUTHCALL. After further investigation, we revised this EIP to its current state: explicitly delegate these responsibilities to the invoker contract.

A user will specifically interact with an invoker they trust. Because they trust this contract to execute faithfully, they will "commit" to certain properties of a call they would like to make by computing a hash of the call values. They can be certain that the invoker will only allow they call to proceed if it is able to verify the values committed to (e.g. a nonce to protect against replay attacks). This certainty arises from the commit value that is signed over by the user. This is the hash of values which the invoker will validate. A safe invoker should accept the values from the user and compute the commit hash itself. This ensures that invoker operated on the same input that user authorized.

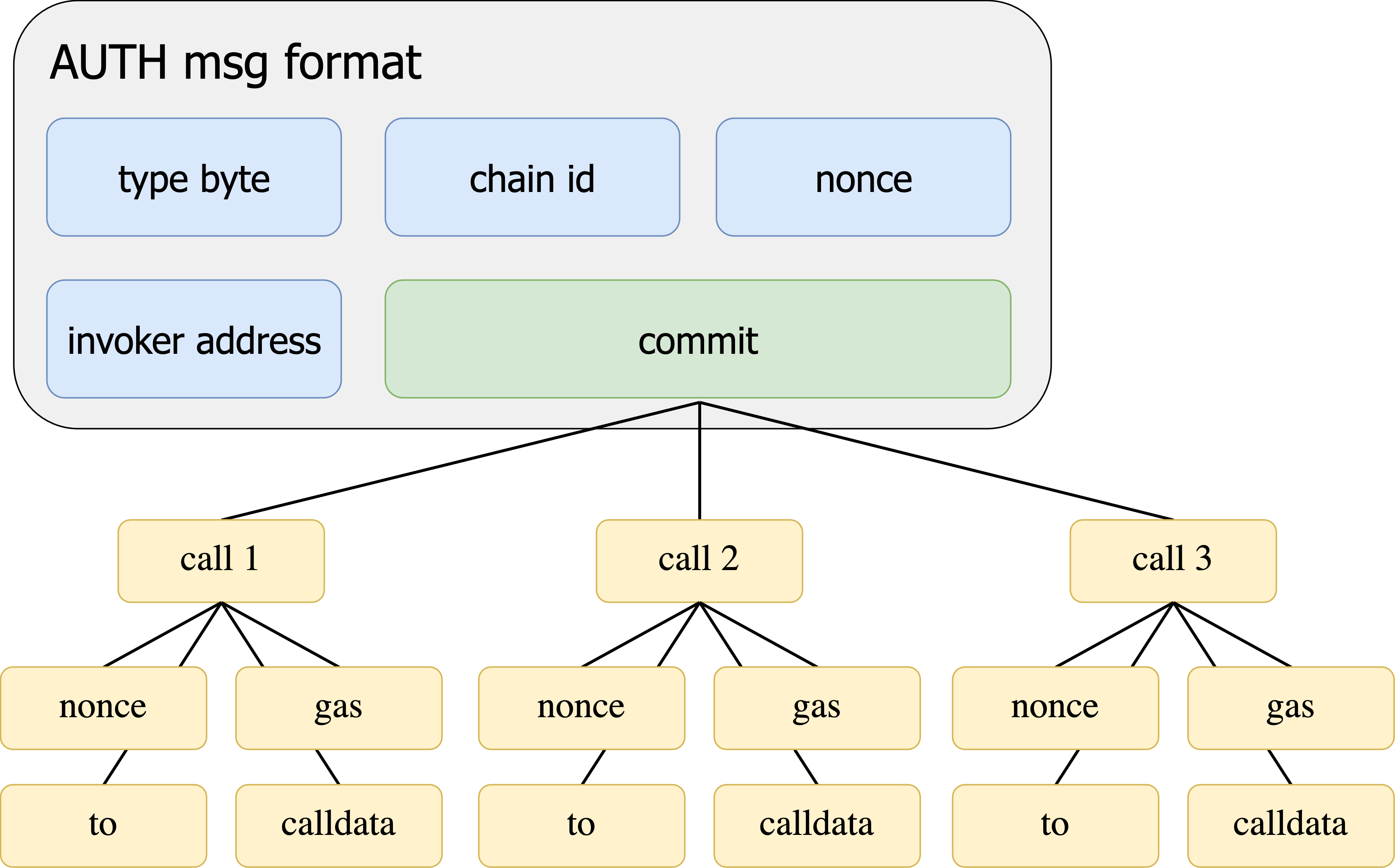

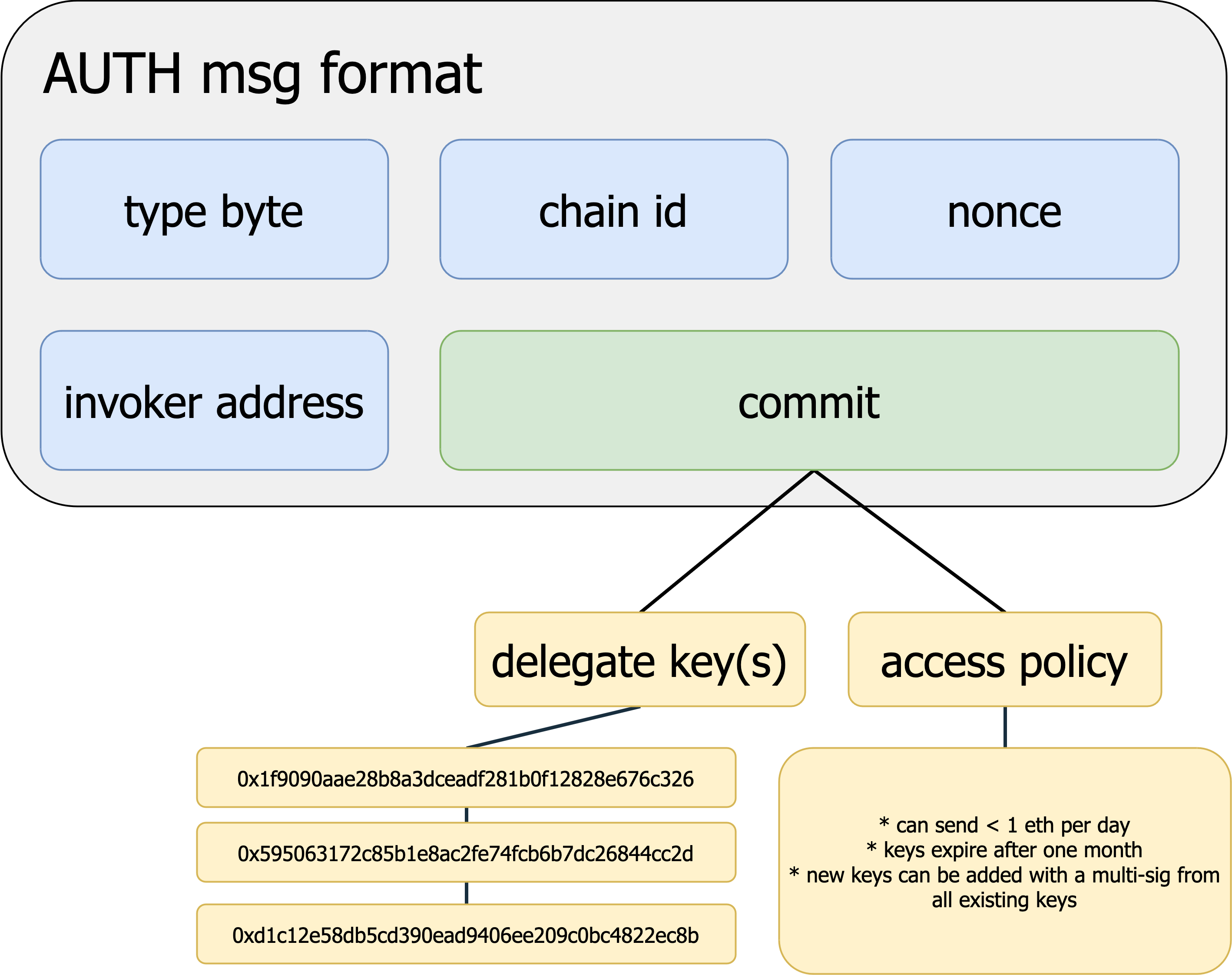

Using commit as a hash of values allows for invokers to implement arbitrary constraints. For example, they could allow accounts to have N parallel nonces. Or, they could allow a user to commit to multiple calls with a single signature. This would allow mult-tx flows, such as ERC-20 approve-transfer actions, to be condensed into a single transaction with a single signature verification. A commitment to multiple calls would look something like the diagram below.

Invoker Contracts

The invoker contract is a trustless intermediary between the sponsor and sponsee. A sponsee signs over invoker to require they transaction to be processed only by a contract they trust. This allows them to interact with sponsors without needing to trust them.

Choosing an invoker is similar to choosing a smart contract wallet implementation. It's important to choose one that has been thoroughly reviewed, tested, and accepted by the community as secure. We expect a few invoker designs to be utilized by most major transaction relay providers, with a few outliers that offer more novel mechanisms.

An important note is that invoker contracts MUST NOT be upgradeable. If an invoker can be redeployed to the same address with different code, it would be possible to redeploy the invoker with code that does not properly verify commit and any account that signed a message over that invoker would be compromised. Although this sounds scary, it is no different than using a smart contract wallet via DELEGATECALL. If the wallet is redeployed with different logic, all wallets using its code could be compromised.

On Call Depth

The EVM limits the maximum number of nested calls, and naively allowing a sponsor to manipulate the call depth before reaching the invoker would introduce a griefing attack against the sponsee. That said, with the 63/64th gas rule, and the cost of AUTHCALL, the stack is effectively limited to a much smaller depth than the hard maximum by the gas parameter.

It is, therefore, sufficient for the invoker to guarantee a minimum amount of gas, because there is no way to reach the hard maximum call depth with any reasonable (i.e. less than billions) amount of gas.

Source of value

Any non-zero value passed into an AUTHCALL is deducted from the invoker's balance. A natural alternative source for value would be the authorized account. However, deducting value from an EOA mid-execution is problematic, as it breaks important invariants for handling pending transactions. Specifically:

• Transaction pools expect transactions for a given EOA to only turn invalid when other transactions from the same EOA are included into a block, increasing its nonce and (possibly) decreasing its balance. Deducting value from the authorized account would make transaction invalidation an unpredictable side effect of any smart contract execution.
• Similarly, miners rely on the ability to statically pick a set of valid transactions from their transaction pool to include into a new block. Deducting value from the authorized account would break this ability, increasing the overhead and thus the time for block creation.

At the same time, the ability to directly take ether out of the authorized account is an important piece of functionality and thus a desired future addition via an additional opcode similar to AUTHCALL. For this reason, it is included as valueExt, an operand of AUTHCALL, which may be activated in a future fork. The prerequisite for that would be to find satisfying mitigations to the transaction invalidation concerns outlined above. One potential avenue for that could be the addition of account access lists similar to EIP-2930, used to signal accounts whose balance can be reduced as a side effect of the transaction (without on their own constituting authorization to do so).

Allowing tx.origin as Signer

Allowing authorized to equal tx.origin enables simple transaction batching, where the sender of the outer transaction would be the signing account. The ERC-20 approve-then-transfer pattern, which currently requires two separate transactions, could be completed in a single transaction with this proposal.

AUTH allows for signatures to be signed by tx.origin. For any such signatures, subsequent AUTHCALLs have msg.sender == tx.origin in their first layer of execution. Without EIP-3074, this situation can only ever arise in the topmost execution layer of a transaction. This EIP breaks that invariant and so affects smart contracts containing require(msg.sender == tx.origin) checks. This check can be used for at least three purposes:

1. Ensuring that msg.sender is an EOA (given that tx.origin always has to be an EOA). This invariant does not depend on the execution layer depth and, therefore, is not affected.
2. Protecting against atomic sandwich attacks like flash loans, that rely on the ability to modify state before and after the execution of the target contract as part of the same atomic transaction. This protection would be broken by this EIP. However, relying on tx.origin in this way is considered bad practice, and can already be circumvented by miners conditionally including transactions in a block.
3. Preventing re-entrancy.

Examples of (1) and (2) can be found in contracts deployed on Ethereum mainnet, with (1) being more common (and unaffected by this proposal.) On the other hand, use case (3) is more severely affected by this proposal, but the authors of this EIP did not find any examples of this form of re-entrancy protection, though the search was non-exhaustive.

This distribution of occurrences—many (1), some (2), and no (3)—is exactly what the authors of this EIP expect, because:

• Determining if msg.sender is an EOA without tx.origin is difficult (if not impossible.)
• The only execution context which is safe from atomic sandwich attacks is the topmost context, and tx.origin == msg.sender is the only way to detect that context.
• In contrast, there are many direct and flexible ways of preventing re-entrancy (ex. using a storage variable.) Since msg.sender == tx.origin is only true in the topmost context, it would make an obscure tool for preventing re-entrancy, rather than other more common approaches.

There are other approaches to mitigate this restriction which do not break the invariant:

• Set tx.origin to a constant ENTRY_POINT address for AUTHCALLs.
• Set tx.origin to the invoker address for AUTHCALLs.
• Set tx.origin to a special address derived from any of the sender, invoker, and/or signer addresses.
• Disallow authorized == tx.origin. This would make the simple batching use cases impossible, but could be relaxed in the future.

AUTHCALL cheaper than CALL when sending value

Sending non-zero value with CALL increases its cost by 9,000. Of that, 6,700 covers the increased overhead of the balance transfer and 2,300 is used as a stipend into the subcall to seed its gas counter. AUTHCALL does not provide a stipend and thus only charges the base 6,700.

Backwards Compatibility

Although this EIP poses no issues for backwards compatibility, there are concerns that it limits future changes to accounts by further enshrining ECDSA signatures. For example, it might be desirable to erradicate the concept of EOAs altogether, and replace them with smart contract wallets that emulate the same behavior. This is fully compatible with the EIP as written, however, it gets tricky if users can then elect to "upgrade" their smart contract wallets to use other methods of authentication -- e.g. convert into a multisig. Without any changes, AUTH would not respect this new logic and continue allowing the old private key to perform actions on behalf of the account.

A solution to this would be at the same time that EOAs are removed, to modify the logic of AUTH to actually call into the account with some standard message and allow the account to determine if the signature / witness is valid. Further research should be done to understand how invokers would need to change in this situation and how best to write them in a future-compatible manner.

Security Considerations

Secure Invokers

The following is a non-exhaustive list of checks/pitfalls/conditions that invokers should be wary of:

• Replay protection (ex. a nonce) should be implemented by the invoker, and included in commit. Without it, a malicious actor can reuse a signature, repeating its effects.
• value should be included in commit. Without it, a malicious sponsor could cause unexpected effects in the callee.
• gas should be included in commit. Without it, a malicious sponsor could cause the callee to run out of gas and fail, griefing the sponsee.
• addr and calldata should be included in commit. Without them, a malicious actor may call arbitrary functions in arbitrary contracts.

A poorly implemented invoker can allow a malicious actor to take near complete control over a signer's EOA.

Allowing tx.origin as Signer

Allowing authorized to equal tx.origin has the possibility to:

• Break atomic sandwich protections which rely on tx.origin;
• Break re-entrancy guards of the style require(tx.origin == msg.sender).

The authors of this EIP believe the risks of allowing authorized to equal tx.origin are acceptable for the reasons outlined in the Rationale section.

Copyright

Copyright and related rights waived via CC0.
